What Is an Inspection Chamber? Manholes and Access Points Explained
Written by the Urgent Drainage Solutions teamPublished Updated 8 min read
Quick answer
An inspection chamber is a shallow access point on an underground drain, with working space at ground level, where pipes join or change direction. Approved Document H covers them up to 1.2 metres deep for normal use. Deeper access points with working space at drain level are manholes. Both let engineers rod, jet and survey the drain.
- Approved Document H names four access points: rodding eyes, access fittings, inspection chambers and manholes.
- Inspection chambers are worked from the surface; manholes have working space at drain level.
- A chamber on a pipe serving only your home is usually yours; shared pipes are usually the water company's.
- Cover strength is graded under BS EN 124, from A15 for pedestrian areas upwards.
- Never build over, bury or pave over a chamber, and never climb into one.
An inspection chamber is a shallow box built over a point in your underground drain, usually where pipes join, bend or change gradient, so the drain can be inspected, rodded and jetted from ground level. A manhole is its deeper cousin, with room to work at drain level. If a chamber in your garden is cracked, buried or keeps filling up, our drain repairs team rebuilds and replaces chambers across Nottinghamshire and the East Midlands.
This guide explains what each type of access point is, the depth rules in Approved Document H, how to find the chambers on your property, how to raise or lower one, and which cover you need where.
What is an inspection chamber?
An inspection chamber is an access point on an underground drain with working space at ground level. The pipes run into it and out again through an open channel in the base, so an engineer can see the flow, push rods or a jetting hose in either direction, or send a camera down the line.
Approved Document H, the Building Regulations guidance on drainage in England, says access should be provided:
- on or near the head of each drain run;
- at a bend and at a change of gradient;
- at a change of pipe size;
- at a junction, unless each run can be cleared from another access point.
That is why most houses have one chamber near the back of the house, another where the drain turns towards the road, and often one near the front boundary.
Inspection chamber vs manhole vs rodding eye vs access chamber: what's the difference?
The difference is depth and working space. Approved Document H (paragraph 2.48) names four types of access point, and its Tables 11 and 12 say which to use at which depth.
| Access point | What it is (Approved Document H) | Typical depth to invert | Minimum internal size |
|---|---|---|---|
| Rodding eye | A capped extension of the pipe | Any, as drain | Same as the pipe, minimum 100 mm |
| Access fitting | A small chamber on the pipe, with no open channel | 0.6 m or less | 150 x 100 mm or 225 x 100 mm |
| Shallow inspection chamber | Chamber with working space at ground level | 0.6 m or less | 225 x 100 mm, or 190 mm circular (drains up to 150 mm) |
| Inspection chamber | Chamber with working space at ground level | 1.2 m or less | 450 x 450 mm, or 450 mm circular |
| Deep inspection chamber | As above, deeper | More than 1.2 m | 450 x 450 mm, opening restricted to a maximum of 350 mm |
| Manhole | Deep chamber with working space at drain level | Up to and beyond 1.5 m to soffit | From 750 x 675 mm, or 1,000 mm circular |
Approved Document H says the restricted opening on deep inspection chambers is "for health and safety reasons to deter entry". It also says the minimum size of any manhole on a sewer serving more than one property should be 1,200 x 675 mm rectangular or 1,200 mm diameter.
"Access chamber" is not a separate category in Approved Document H. In the trade it is used loosely for any chamber that gives access to a drain, and some manufacturers use it for small chambers that sit between an access fitting and a full inspection chamber. If a quote or survey mentions an access chamber, ask the depth and size so you know which type it really is.
How far apart should inspection chambers be?
Approved Document H Table 13 sets maximum spacings between access points on drains up to 300 mm. For example, it allows up to 45 m between two inspection chambers, and up to 22 m from the start of an external drain to the first inspection chamber. Long runs without access are harder to clear and survey, which is one reason we sometimes recommend adding a chamber during a repair.
Are plastic or brick inspection chambers better?
Neither is better in every case. Approved Document H Table 14 lists clay, bricks and blocks, vitrified clay, precast and in situ concrete, and plastics as acceptable materials for inspection chambers and manholes.
| Plastic chamber | Brick or concrete chamber | |
|---|---|---|
| Typical age of house | Most new builds and recent extensions | Older houses, often pre-1980s |
| Base | Moulded, with preformed channels and inlets | Built on site, with a channel and benching |
| Common faults | Cracked risers, a lid that no longer fits, connections pulled out by settlement | Crumbling mortar, loose bricks, broken benching and channels |
| Raising | Riser sections from the same manufacturer | Build up the walls in brick and reset the frame |
| Repair | Usually replaced as a unit | Rebuilt, re-benched or replaced with a plastic chamber |
Where half-round channels are used, Approved Document H says the channel and branches should be benched up at least to the top of the outgoing pipe, at a slope of 1 in 12. Broken benching in older brick chambers lets solids catch and settle, which is a common cause of repeat blockages.
How do I find the inspection chambers on my property?

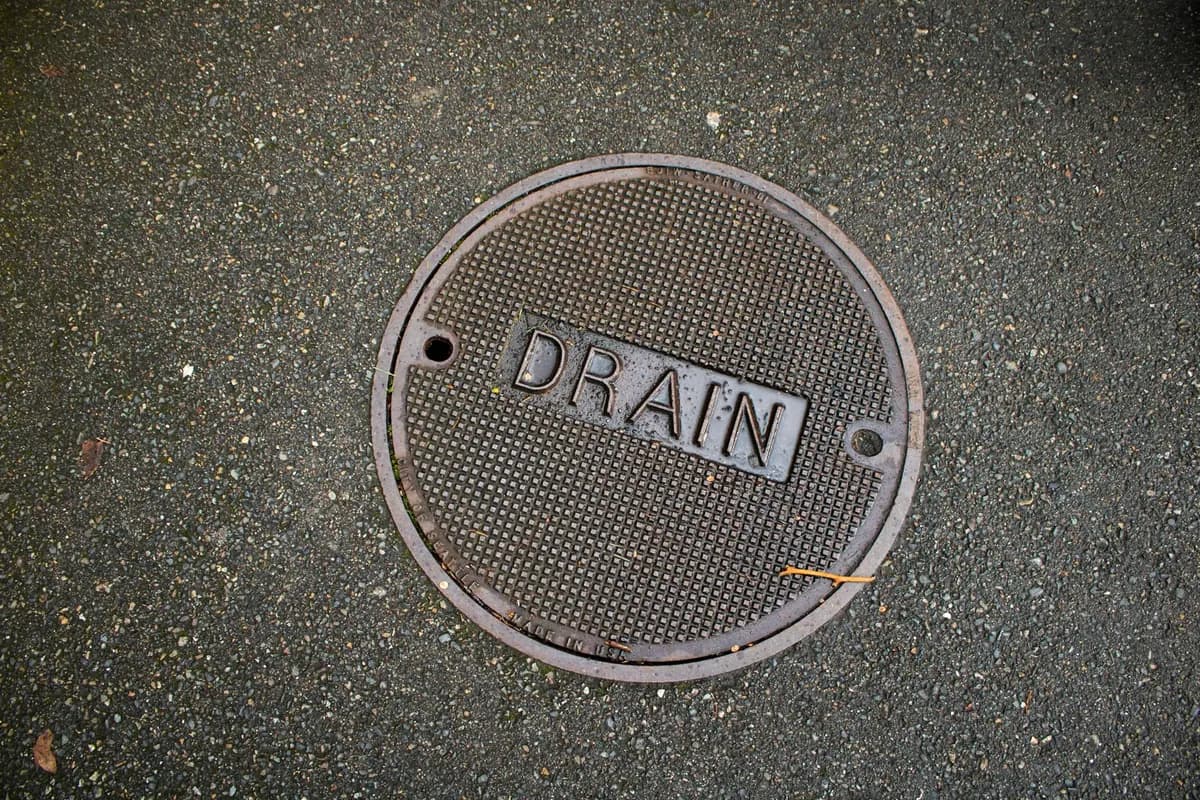

Start with a walk round. Covers are usually square or round, in cast iron, steel, concrete or plastic, and sit along a line from the back of the house towards the road. Then use these checks:
- Follow the soil pipe. The chamber closest to the house is usually near where the soil and vent pipe goes into the ground.
- Look for lines of covers. Drains run in straight lines between chambers, so two covers give you the likely route.
- Check under decking, gravel and planters. Covers are often hidden during landscaping.
- Ask for the sewer records. Approved Document H notes that sewer record maps are held by the sewerage undertaker and by local authorities.
- Check your paperwork. Building control plans, a homebuyer drain survey or a previous CCTV report often includes a drain layout.
- Book a trace. If none of that works, a CCTV survey with drain mapping locates each chamber and run.
Not every cover is a drain. Covers in the ground can also belong to water supply, gas, electricity or telecoms companies, so only lift ones you know are yours.
Can you raise or lower an inspection chamber?
Yes. Chambers often need raising or lowering when a patio, driveway or garden level changes, and the cover must finish flush with the new surface.
- Plastic chambers are raised with riser sections from the same manufacturer, then a new frame and cover. They are lowered by cutting the riser down, which is only possible if the chamber is tall enough.
- Brick chambers are raised by building up the walls on sound brickwork and bedding the frame in mortar. Lowering means taking courses off and resetting the frame.
- Deeper finished levels can change the chamber type. If the new depth takes a chamber past 1.2 m, check it still meets the sizes in Approved Document H.
Covers should never be buried. A chamber you cannot open is a chamber nobody can clear in an emergency. If the chamber is on a shared or public sewer, ask the water company before altering it, because the asset is theirs.
What load class of cover does an inspection chamber need?
The cover has to suit what will drive or walk over it. Covers and frames are tested and classified under BS EN 124-1:2015, and Approved Document H says covers should be removable, non-ventilating and "of suitable strength".
| Class | Test load (kN, the number in the class name) | Typical use at a home or business |
|---|---|---|
| A15 | 15 | Paths, patios, lawns: pedestrians and cycles only |
| B125 | 125 | Domestic driveways, pavements, car parks for cars |
| C250 | 250 | Kerbside channels and slow-moving vans in yards |
| D400 | 400 | Roads and areas with regular vehicle traffic |
| E600 | 600 | Heavy industrial areas and loading bays |
| F900 | 900 | Very heavy loads, such as airfield pavements |
A common reason for a cracked cover on a driveway is a pedestrian-grade A15 cover that was never meant to take a car. Approved Document H also says small lightweight covers should be secured, for example with screws, to deter children, and that chambers inside buildings need mechanically fixed airtight covers.
Can you build over an inspection chamber?
Not on a shared sewer. Approved Document H (Requirement H4, paragraph 1.3) says buildings or extensions should not be built over a manhole, inspection chamber or other access fitting on any sewer serving more than one property. On a private drain the chamber may be moved or replaced, but access still has to be kept. Our guide to building over a drain explains the build over process.
Who owns the inspection chamber in my garden?
It depends on what the pipe serves. A chamber on a drain that serves only your property is normally yours. Under the 2011 transfer regulations, most pipes serving more than one property became public sewers, so a chamber on a shared pipe is usually the water company's. Severn Trent adds that if your home was built after 2011, shared pipes will be the homeowner's responsibility. Anglian Water and Severn Trent both take reports of damaged covers on their sewers. Our guide to who is responsible for blocked drains explains the split.
Is it safe to open an inspection chamber?
A light plastic lid on a shallow chamber can usually be lifted with gloves to see whether it is full. Don't force heavy, rusted or stuck covers, never lean in or climb into a chamber, and keep children and pets away while it is open. Deep chambers and manholes are confined spaces. If a chamber is full, our guide on how to unblock an outside drain explains what is safe to try and when to stop.
When to call a professional
Call a drainage engineer if a chamber is cracked or collapsing, the channel or benching is broken, the cover is damaged or the wrong class for where it sits, you cannot find or open your chambers, or a chamber keeps filling up. Those faults don't fix themselves, and a broken chamber lets soil in and water out.
Our drain repairs service rebuilds, raises and replaces inspection chambers, from £250 + VAT, and repairs carry a 12-month guarantee. If you don't know where your chambers are or what state the pipes are in, a CCTV drain survey from £149 + VAT maps the runs and records their condition. The final price depends on the job, and you get a fixed quote first with no call-out fee.
We cover Nottingham, Nottinghamshire, Derbyshire, Leicestershire and Lincolnshire, including drain repairs in Nottingham. Call 07300 600 950 or ask for a quote.
Sources
- Approved Document H: Drainage and waste disposal (gov.uk)
- BS EN 124-1:2015 Gully tops and manhole tops for vehicular and pedestrian areas (BSI)
- The Water Industry (Schemes for Adoption of Private Sewers) Regulations 2011 (legislation.gov.uk)
- Anglian Water: my drain or manhole cover is raised, damaged or broken
- Severn Trent: what you need to know about manholes
